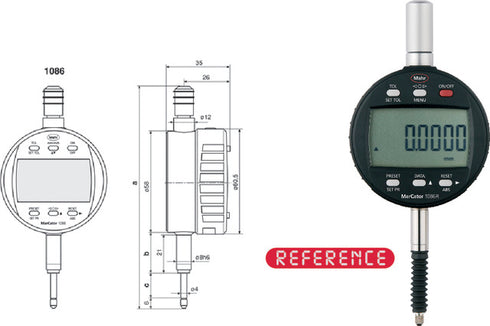

Technical data
| b mm: | 24.8 |
| Measuring range mm: | 25 |
| Shank length L: | 25 |
| Overall length (B5/a) mm: | 193.20 |
| c mm: | 50 |
| Manufacturer item number shop: | 4337641KAL |
| a mm: | 193.2 |
| Measuring Force N: | 1-2,25 |
| Length of measuring pin (c) mm: | 50.00 |
| Error limit mm: | 0.004 |
| Reading inch: | 0,00002|0,00005|0,0001|0,0002|0,0005 |
| AutoPower OFF: | Yes |
| Data output: | Digimatic, RS 232 C, USB |
| Protection class (IP): | IP54K |
| Display type: | Digital |
| Keypad lock: | Yes |
| Presetting: | Yes |
| Power supply: | Battery |
| switchable | Yes |
| Resetting the display: | Yes |
| Min / Max adjustable: | No |
