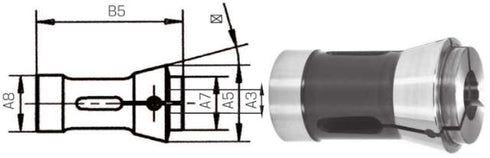

Pressure collet 173E FAHRION, pressure collet clamping range 60-360 mm hexagon 173 E

Version:
- Concentricity according to DIN class 2
- DIN 6343
- Clamping bridging H9, i.e. only the nominal dimension can be clamped
- Bore design up to Ø 8 mm smooth bore, above that with cross grooves. Collets with smooth bore available on request

How to use:
- For bar stock, cut-to-length and pre-machined workpieces
- For workpiece clamping (bar or chuck work) in conventional single-spindle lathes and CNC lathes directly in the spindle or in the collet chuck
