Hydraulic Expansion Chuck SCHUNK, DIN 69871 Hydraulic Expansion Chuck Tendo, long, slim

Name: Hydraulic Expansion Chuck SCHUNK, DIN 69871 Hydraulic Expansion Chuck Tendo, long, slim
Brand: SCHUNK
SKU: 241412 40/08
Price: 1455.00 AED
Availability: InStock

BRAND: SCHUNK

SKU : 241412 40/08

Manufacturer article number:

Product description

Version:
- Slim design with axial length adjustment
- For automatic tool change
- Balancing quality G2,5 at 25.000 min^-1
- Permanent concentricity and alternating repeatability < 0,003 mm

dhs. 1,455.00 excl. VAT, plus if applicable

Only 0 available!

SALES INFORMATIONS

Price unit	1
Packing unit	1
unit	PC
minimum order quantity	1

DELIVERY & RETURNS

Comments

Collection possible at FMS MANUFACTURING EQUIPMENT DMCC

Usually finished in 5 days or more.

Secure ordering process:

DIVIDE:

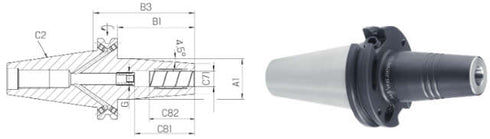

Technical data

DIN standard:	DIN 69871, DIN 7388-1
Form:	AF
[C2] Admission size, machine side:	SK40
Balancing:	25000 rpm
With cooling channel:	No
Manufacturer item number shop:	1319639
[A1] Body diameter 1 mm:	27
[B1] Collet length:	60.90
[B3] Collar length mm:	80.00
[C71] Mounting diameter, min., workpiece side mm:	8
[C72] Mounting diameter, max., workpiece side mm:	10.00
[C81] Clamping length, max. mm:	36.00
[C82] Clamping length, min. mm:	26.00
