Universal Chuck WTE, DIN 69871, Short Drill Chuck, Precision

Name: Universal Chuck WTE, DIN 69871, Short Drill Chuck, Precision
Brand: WTE
SKU: 240677 40/16
Price: 1615.00 AED
Availability: InStock

BRAND: WTE

SKU : 240677 40/16

Manufacturer article number:

Product description

Version:

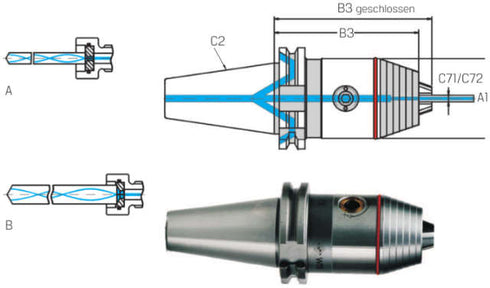

- For clockwise and anti-clockwise rotation
- Steep taper shank to ISO 7388-1 Form AD or Form AF with internal coolant supply either through the center (Form AD) or via the collar (Form AF) for automatic tool change

dhs. 1,615.00 excl. VAT, plus if applicable

Only 1 available!

SALES INFORMATIONS

Price unit	1
Packing unit	1
unit	PC
minimum order quantity	1

DELIVERY & RETURNS

Comments

Collection possible at FMS MANUFACTURING EQUIPMENT DMCC

Usually finished in 5 days or more.

Secure ordering process:

DIVIDE:

Technical data

DIN standard:	DIN 69871, DIN 7388-1
Form:	AD/B
[C2] Admission size, machine side:	SK40
Balancing:	25000 rpm
With cooling channel:	Yes
Manufacturer item number shop:	30335976
[A1] Body diameter 1 mm:	57
[B3] Collar length mm:	95.00
[B3] Collar length (closed) mm:	101
[C71] Mounting diameter, min., workpiece side mm:	2
[C72] Mounting diameter, max., workpiece side mm:	16.00
