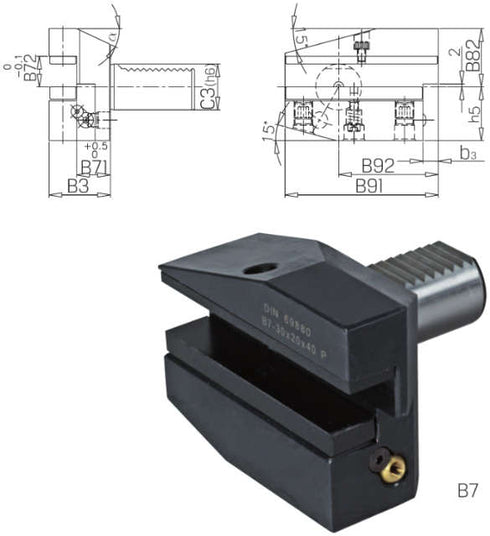

Tabular product data
| Mounting diameter on machine side mm C3 DCONMS | 16 |
| DIN Norm | DIN 69880 |
| Form | B7 |
| Functional height mm B72 HF | 12 |
| Functional length mm | 13 |
| Total width mm B91 OAW | 58 |
| Manufacturer item number shop | 233300 B716X12X24 |
| Collar length mm | 24 |
| Radial width mm B92 RADW | 39 |
| Radial height mm B82 RADH | 22 |
| B3 Collar length mm | 24 |
| B71 Functional length mm | 13 |
| B72 functional height mm | 12 |
| B82 Radial height mm | 22 |
| B91 total width mm | 58 |
| B92 radial width mm | 39 |
| C3 Mounting diameter on machine side mm | 16 |
