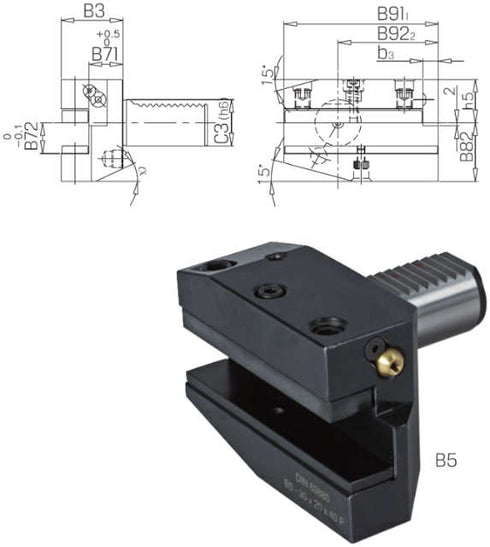

Technical data
| Mounting diameter on machine side mm C3 DCONMS | 30 |
| DIN Norm | DIN 69880 |
| Form | B5 |
| Functional height mm B72 HF | 20 |
| Functional length mm | 22 |
| Overall width mm B91 OAW | 100 |
| Manufacturer item number shop | 233200 B530X20X40 |
| Collar length mm | 40 |
| Radial width mm B92 RADW | 65 |
| Radial height mm B82 RADH | 38 |
| B3 Collar length mm | 40 |
| B71 Functional length mm | 22 |
| B72 Functional height mm | 20 |
| B82 Radial height mm | 38 |
| B91 Overall width mm | 100 |
| B92 Radial width mm | 65 |
| C3 Mounting diameter on machine side mm | 30 |
