Technical data

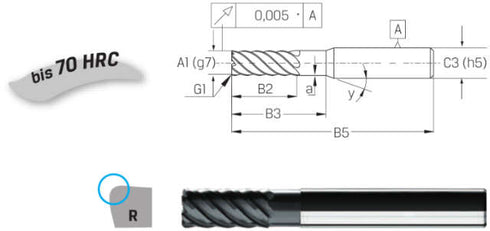

| [A1] Cutting diameter mm: | 8 |
| Material: | Solid carbide |
| DIN standard: | Factory standard |
| Coating [H5/COATN]: | TiAlN |
| [A5] Neck diameter mm: | 0.00 |
| Cutting edge shape: | corner radius |
| [B2/B6] Cutting length max. mm: | 18.00 |
| Helix angle: | 45 ° |
| Manufacturer item number shop: | 179088 8,00X0,5 |
| [G5] Profile angle: | 0 |
| [B3] Collar length mm: | 25.00 |
| Relative length: | short |
| [B3/B4/B5] Total length mm: | 70 |
| [C12] Recording form, machine side: | 6535 HA shaft |
| [C3] Mounting diameter, machine side mm: | 8 |
| Transition dimension mm: | 0.3 mm |
| [F21] Number of effective cutting edges, circumferential: | 6 |
| [G1] Corner radius mm: | 0.5 |
| fz mm/tooth: | 0,060-0,080 |
