Technical data
| Mounting diameter on machine side mm C3 DCONMS | 6 |
| Machine-side admission form | 6535 HA shaft |
| Coating H5 COATN | TiAlN |
| DIN Norm | Factory standard |
| Angle of twist | 30 |
| Corner radius mm | 0.5 |
| fz mm tooth | 0,065-0,125 |
| Total length mm | 79 |
| Manufacturer item number shop | 179070 6,00X35X0,5X79 |
| Collar length mm | 35 |
| Material | Solid carbide |
| Relative length | short, medium, long |
| Cutting diameter mm A1 DC | 6 |
| Cutting edge shape | corner radius |
| Cutting length max mm | 6 |
| Transitional dimension mm | 0.2 |
| Center cut | Yes |

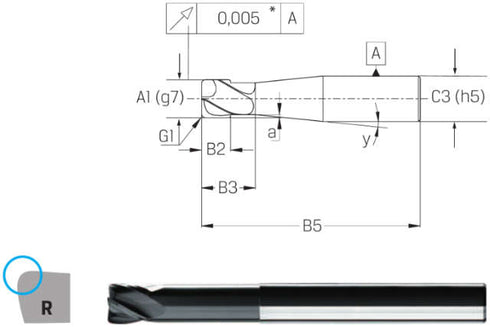

| A1 Cutting diameter mm | 6 |
| A5 Neck diameter mm | 8.5 |
| B2 B6 Cutting length max mm | 6 |
| B3 B4 B5 Total length mm | 79 |
| B3 Collar length mm | 35 |
| C12 Mounting form on the machine side | 6535 HA shaft |
| C3 Mounting diameter on machine side mm | 6 |
| F21 Number of effective cutting edges on the circumference | 4 |
| G1 corner radius mm | 0.5 |
