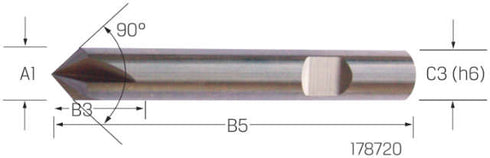

Tabular product data
| Mounting diameter on machine side mm C3 DCONMS | 4 |
| Machine-side admission form | 6535 shaft |
| Coating H5 COATN | uncoated |
| DIN Norm | DIN 6527 |
| Cutting type | Type N |
| Total length mm | 54 |
| Manufacturer item number shop | 178720 4,00 |
| Material | Solid carbide |
| Profile angle | 90 |
| Relative length | short |
| Cutting diameter mm A1 DC | 4 |
| Center cut | Yes |
| A1 Cutting diameter mm | 4 |
| B2 B6 Cutting length max mm | 1 |
| B3 B4 B5 Total length mm | 54 |
| B3 Collar length mm | 26 |
| C12 Mounting form on the machine side | 6535 shaft |
| C3 Mounting diameter on machine side mm | 4 |
| F21 Number of effective cutting edges on the circumference | 4 |
| G5 Profile angle | 90 |
