End mill solid carbide GP, 3 × A1, long, Alnova

BRAND: PREMUS GP

SKU : 175507 8,00

Manufacturer article number:
Product description
Version:
- 3 × A1
- Latest generation of carbide
- Unevenly twisted
- Unequal cutting edge pitch
- Reinforced core
- Large chip spaces
- Cutting tips with corner radius
- Special edge preparation
- With ground chip breakers
- Special face geometry for perfect immersion behaviour

How to use:
Especially suitable for trochoidal milling of stainless steel.
dhs. 288.00 excl. VAT, plus if applicable

Only 16 available!

SALES INFORMATIONS

Price unit1
Packing unit1
unitPC
minimum order quantity1
1
Visas
Mastercard
Teacher
Apple Pay
Google Pay

Tabular product data

Relative length:extra short
Corner bevel width mm:
DIN standard:Factory standard
Material:Solid carbide
Drilling depth [A11 x D]:3×D

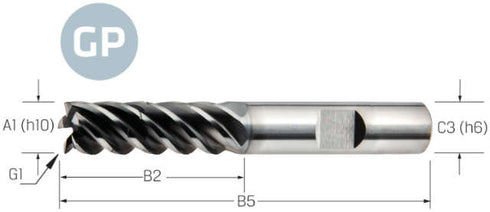

[A1] Cutting diameter mm:8
Coating [H5/COATN]:AlTiN
[G1] Corner radius mm:0.1
Manufacturer item number shop:175507 8,00
Cutting edge shape:corner radius
[A5] Neck diameter mm:
[G5] Profile angle:
[B2/B6] Cutting length max. mm:27
[B3/B4/B5] Total length mm:63
[B3] Collar length mm:27
[C12] Recording form, machine side:6535 HB shaft
[C3] Mounting diameter, machine side mm:8
[F21] Number of effective cutting edges, circumferential:4
