Tabular product data
| Mounting diameter on machine side mm C3 DCONMS | 10 |
| Machine-side admission form | 6535 HA shaft |
| Coating H5 COATN | TiAlN |
| DIN Norm | Factory standard |
| Angle of twist | 30 |
| Corner chamfer width mm | 0.1 |
| Area of application material to be processed | P,M,K,S,N,Universal |
| Total length mm | 48 |
| Manufacturer item number shop | 175316 9,00 |
| Profile angle | 90 |
| Relative length | extra short |

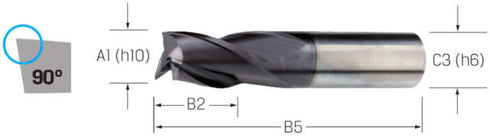

| Cutting diameter mm A1 DC | 9 |
| Cutting length max mm | 11 |
| Center cut | Yes |
| A1 Cutting diameter mm | 9 |
| B2 B6 Cutting length max mm | 11 |
| B3 B4 B5 Total length mm | 48 |
| B3 Collar length mm | 27 |
| C12 Mounting form on the machine side | 6535 HA shaft |
| C3 Mounting diameter on machine side mm | 10 |
| F21 Number of effective cutting edges on the circumference | 3 |
| G1 corner radius mm | 0.1 |
| G5 Profile angle | 90 |
