Technical data
| Area of application (material to be processed): | N |
| Corner bevel width mm: | 0.1 |
| DIN standard: | DIN 6527 |
| Material: | Solid carbide |

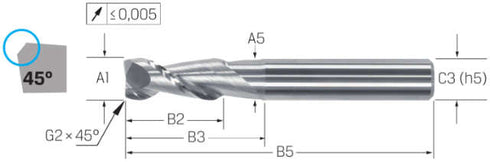

| [A1] Cutting diameter mm: | 10 |
| Manufacturer item number shop: | F4002NNL1000CA- |
| Center cut: | Yes |
| Cutting edge shape: | Chamfer |
| Helix angle: | 43 ° |
| [A5] Neck diameter mm: | 9.50 |
| [B2/B6] Cutting length max. mm: | 22.00 |
| [B3/B4/B5] Total length mm: | 73 |
| [B3] Collar length mm: | 30.50 |
| [C12] Recording form, machine side: | 6535 HA-shaft, 6535 HB-shaft |
| [C3] Mounting diameter, machine side mm: | 10 |
