Tabular product data

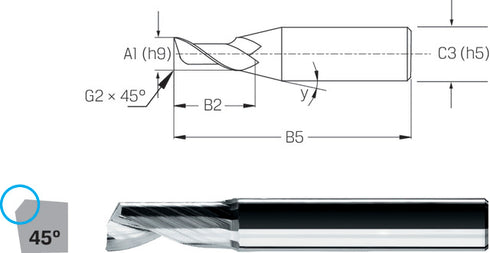

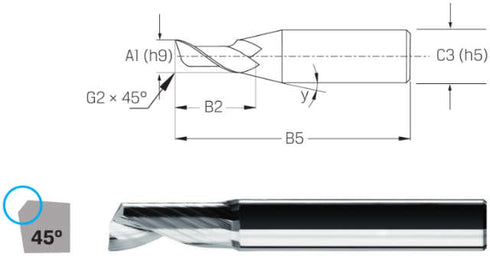

| Mounting diameter on machine side mm C3 DCONMS | 3 |
| Machine-side admission form | 6535 HA shaft |
| Outlet to the shaft | 15 |
| Coating H5 COATN | uncoated |
| DIN Norm | Factory standard |
| Angle of twist | 30 |
| Corner chamfer width mm | 0.15 |
| Area of application material to be processed | N |
| Total length mm | 40 |
| Manufacturer item number shop | 175100 0,60 |
| Profile angle | 45 |
| Relative length | short |
| Cutting diameter mm A1 DC | 0.6 |
| Cutting edge shape | Chamfer |
| Cutting length max mm | 3 |
| Center cut | Yes |
| A1 Cutting diameter mm | 0.6 |
| B2 B6 Cutting length max mm | 3 |
| B3 B4 B5 Total length mm | 40 |
| C12 Mounting form on the machine side | 6535 HA shaft |
| C3 Mounting diameter on machine side mm | 3 |
| F21 Number of effective cutting edges on the circumference | 1 |
| G5 Profile angle | 45 |
