SALES INFORMATIONS
| Price unit | 1 |
| Packing unit | 1 |
| Unit of measure | PC |
| minimum order quantity | 1 |

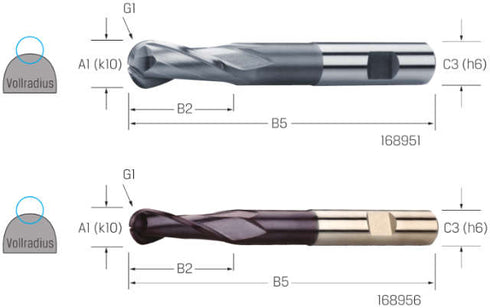

Technical data
| [A1] Cutting diameter mm: | 18 |
| Material: | HSS-Co |
| DIN standard: | Factory standard |
| Coating [H5/COATN]: | uncoated |
| [A5] Neck diameter mm: | 0.00 |
| Helix angle: | 25 ° |
| [B2/B6] Cutting length max. mm: | 32.00 |
| Relative length: | extra long |
| Center cut: | true |
| Manufacturer item number shop: | 168951 18,00 |
| [B3/B4/B5] Total length mm: | 123 |
| [C12] Recording form, machine side: | 1835 B-stock |
| [C3] Mounting diameter, machine side mm: | 16 |
| [F21] Number of effective cutting edges, circumferential: | 2 |
| [G1] Corner radius mm: | 9 |
| fz mm/tooth: | 0,020-0,023 |
