Tabular product data
| Number of effective cutting edges on the circumference | 2 |
| Mounting diameter on machine side mm C3 DCONMS | 12 |
| Machine-side admission form | 1835 B-stock |
| Coating H5 COATN | uncoated |
| DIN Norm | Factory standard |
| Angle of twist | 25 |
| fz mm tooth | 0,022-0,035 |
| Total length mm | 73 |
| Manufacturer item number shop | 168881 14,00 |
| Material | HSS-Co |
| Relative length | short |
| Cutting diameter mm A1 DC | 14 |
| Cutting length max mm | 16 |
| Full radius mm | 7 |
| Center cut | Yes |

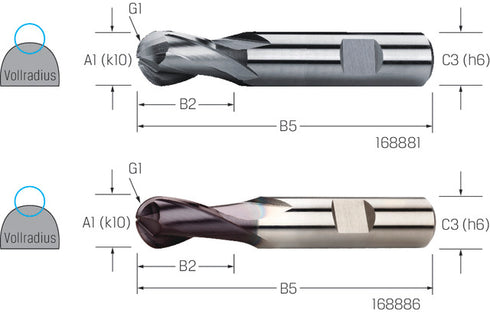

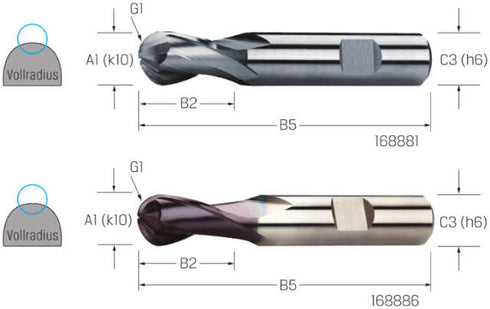

| A1 Cutting diameter mm | 14 |
| B2 B6 Cutting length max mm | 16 |
| B3 B4 B5 Total length mm | 73 |
| C12 Mounting form on the machine side | 1835 B-stock |
| C3 Mounting diameter on machine side mm | 12 |
| F21 Number of effective cutting edges on the circumference | 2 |
| G1 corner radius mm | 7 |
