Technical data

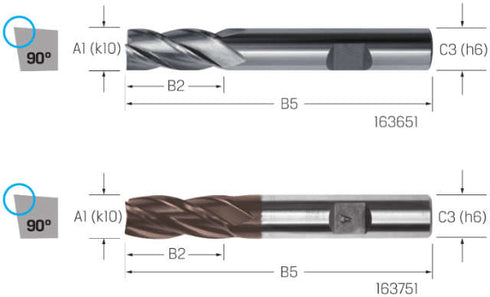

| Number of effective cutting edges on the circumference | 4 |
| Mounting diameter on machine side mm C3 DCONMS | 12 |
| Machine-side admission form | 1835 B-stock |
| Coating H5 COATN | uncoated |
| DIN Norm | DIN 844 |
| Angle of twist | 30 |
| Area of application material to be processed | Universal,P,M,K |
| Cutting type | Type N |
| Total length mm | 79 |
| Manufacturer item number shop | 163651 11,00 |
| Profile angle | 90 |
| Relative length | long |
| Cutting diameter mm A1 DC | 11 |
| Cutting length max mm | 22 |
| Center cut | Yes |
| A1 Cutting diameter mm | 11 |
| B2 B6 Cutting length max mm | 22 |
| B3 B4 B5 Total length mm | 79 |
| C12 Mounting form on the machine side | 1835 B-stock |
| C3 Mounting diameter on machine side mm | 12 |
| F21 Number of effective cutting edges on the circumference | 4 |
| G5 Profile angle | 90 |
