Technical data
| Number of effective cutting edges on the circumference | 3 |
| Mounting diameter on machine side mm C3 DCONMS | 6 |
| Machine-side admission form | 1835 B-stock |
| Coating H5 COATN | TiAlN |
| DIN Norm | DIN 844 |
| Angle of twist | 30 |
| Area of application material to be processed | Universal,P,M,K |
| Cutting type | Type N |
| Total length mm | 68 |
| Manufacturer item number shop | 162656 5,00 |
| Profile angle | 90 |
| Relative length | extra long |
| Cutting diameter mm A1 DC | 5 |
| Cutting length max mm | 24 |
| Center cut | Yes |

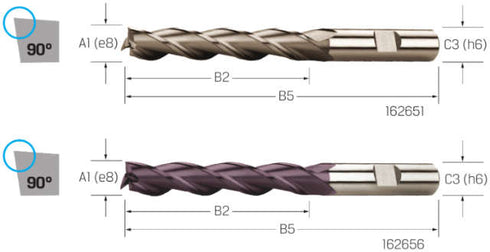

| A1 Cutting diameter mm | 5 |
| B2 B6 Cutting length max mm | 24 |
| B3 B4 B5 Total length mm | 68 |
| C12 Mounting form on the machine side | 1835 B-stock |
| C3 Mounting diameter on machine side mm | 6 |
| F21 Number of effective cutting edges on the circumference | 3 |
| G5 Profile angle | 90 |
