Technical data

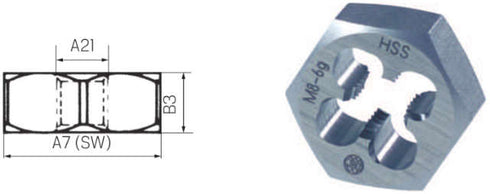

| Area of application (material to be processed): | P |
| [A21] Nominal thread diameter metric: | M22 |
| Material: | HSS |
| Thread type: | M |
| Thread standard: | DIN 13 |
| Cutting tool standard: | DIN 382 |
| [A3] Thread pitch mm: | 2.5 |
| Flank angle: | 60 ° |
| Manufacturer item number shop: | 120205 |
| Form: | Hexagon |
| Lobed: | No |
| Surface: | HSS |
| [A7] Body diameter mm: | 50 |
| Skiving cut: | No |
| Cutting direction: | right |
| [B3/B4/B5] Total length mm: | 22 |
| Tolerance field: | 6g |
