Technical data
| Type of entry | C |
| Mounting diameter on machine side mm C3 DCONMS | 3.5 |
| Coating H5 COATN | Vaporized |
| Bore type | Blind hole |
| Area of application material to be processed | N,S |
| Flank angle | 60 |
| Total length mm | 56 |
| Thread type | M |
| Thread nominal diameter | M3 |
| Nominal thread diameter metric A21 | M3 |
| Thread cutting part length mm | 11 |
| Thread pitch mm A3 | 0.5 |
| Manufacturer item number shop | 137812 M3 |
| Core hole diameter mm | 2.5 |
| With cooling channel | No |
| Standard of the tap | DIN 371,DIN 376 |
| Thread norm | DIN 13 |
| Right-hand spiral groove | 15 |
| Shank length mm | 6 |
| Cutting direction | right |
| Tolerance field | H6 |
| Square a | 2.7 |

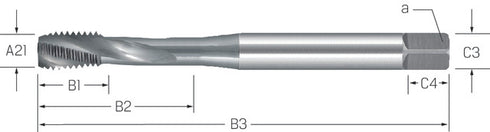

| A21 Thread nominal diameter metric | M3 |
| A3 Thread pitch mm | 0.5 |
| B3 B4 B5 Total length mm | 56 |
| C3 Mounting diameter on machine side mm | 3.5 |
| C4 Shaft Length mm | 6 |
| F1 Cutting Direction | right |
