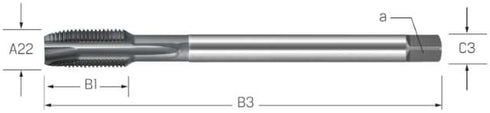

Technical data
| Area of application (material to be processed): | P, M, S |
| Material: | HSS-E-V3 |
| Thread type: | G |
| Nominal thread diameter: | 1 inch |
| Coating [H5/COATN]: | Vaporized |
| Taper lead form: | B |
| [A21] Nominal thread diameter inch: | G1 |
| Flank angle: | 55 ° |
| Manufacturer item number shop: | 135740 1-11 |
| Cutting direction: | right |
| Standard of tap: | DIN 5156 |
| Thread standard: | DIN ISO 228 |
| Bore type: | through hole |
| Threads per inch: | 11 |
| [A21/D34] Nominal thread diameter mm: | 33.25 |
| With cooling channel: | No |
| [B3/B4/B5] Total length mm: | 160 |
| Thread cutting part length mm: | 30.00 |
| [C3] Mounting diameter, machine side mm: | 25 |
| Square (a): | 20 |
| Tap hole diameter mm: | 30.75 |
