Technical data
| Area of application (material to be processed): | P, N, plastic |
| Material: | HSS-E-V3 |
| Thread type: | M |

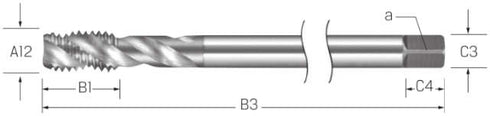

| [A21] Nominal thread diameter metric: | M6 |
| Nominal thread diameter: | M6 |
| Coating [H5/COATN]: | uncoated |
| Taper lead form: | C |
| Flank angle: | 60 ° |
| Manufacturer item number shop: | 133182 M6 |
| Cutting direction: | right |
| Standard of tap: | Factory standard |
| Thread standard: | DIN 13 |
| Tolerance field: | H6 |
| [A3] Thread pitch mm: | 1 |
| Bore type: | Blind hole |
| Right spiral groove: | 40 ° |
| With cooling channel: | No |
| [B3/B4/B5] Total length mm: | 160 |
| Thread cutting part length mm: | 10.00 |
| [C3] Mounting diameter, machine side mm: | 6 |
| [C4] Shaft length mm: | 8 |
| Square (a): | 4.9 |
| Tap hole diameter mm: | 5 |
