Technical data
| Type of entry | B |
| Mounting diameter on machine side mm C3 DCONMS | 6 |
| Coating H5 COATN | uncoated |
| Bore type | through hole |
| Area of application material to be processed | P,K,N |
| Flank angle | 60 |
| Total length mm | 50 |
| Thread type | M |
| Thread nominal diameter | M5 |
| Nominal thread diameter metric A21 | M5 |
| Thread cutting part length mm | 13 |
| Thread pitch mm A3 | 0.8 |
| Manufacturer item number shop | 132020 M5 |
| Core hole diameter mm | 4.2 |
| With cooling channel | No |
| Standard of the tap | DIN 352 |
| Thread norm | DIN 13 |
| Shank length mm | 8 |
| Cutting direction | right |
| Tolerance field | H6 |
| Square a | 4.9 |

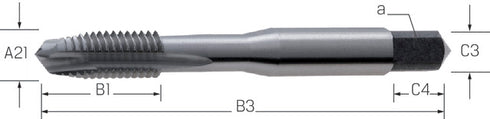

| A21 Thread nominal diameter metric | M5 |
| A3 Thread pitch mm | 0.8 |
| B3 B4 B5 Total length mm | 50 |
| C3 Mounting diameter on machine side mm | 6 |
| C4 Shaft Length mm | 8 |
| F1 Cutting Direction | right |
