Tabular product data
Area of application (material to be processed): | P,K,N |
Flank angle: | 60 |

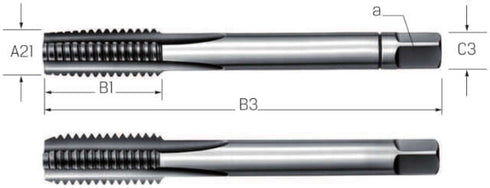

[A21] Nominal thread diameter metric: | M3 |
Standard of tap: | DIN 2181 |
Thread type: | MF |
[F1] Cutting direction: | right |
Manufacturer item number shop: | 130330 M3X0,35 |
Tolerance field: | H6 |
Surface: | HSS |
[A3] Thread pitch mm: | 0.35 |
Thread cutting part length mm: | 9 |
[C3] Mounting diameter, machine side mm: | 3.5 |
[B3/B4/B5] Total length mm: | 40 |
Square (a): | 2.7 |
Tap hole diameter mm: | 2.65 |
