Tabular product data
| Mounting diameter on machine side mm C3 DCONMS | 9 |
| Area of application material to be processed | P,K,N |
| Flank angle | 60 |
| Total length mm | 70 |
| Thread type | MF |
| Nominal thread diameter metric A21 | M12 |
| Thread cutting part length mm | 20 |
| Thread pitch mm A3 | 1.25 |
| Manufacturer item number shop | 130330 M12X1,25 |
| Core hole diameter mm | 10.8 |
| Standard of the tap | DIN 2181 |
| Surface | HSS |
| Cutting direction | right |
| Tolerance field | H6 |
| Square a | 7 |

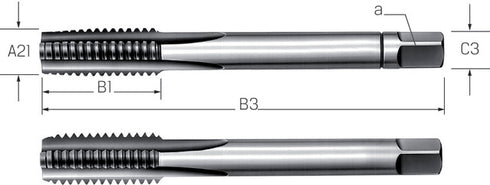

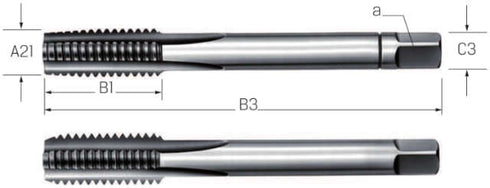

| A21 Thread nominal diameter metric | M12 |
| A3 Thread pitch mm | 1.25 |
| B3 B4 B5 Total length mm | 70 |
| C3 Mounting diameter on machine side mm | 9 |
| F1 Cutting Direction | right |
