Tabular product data
| Type of entry | B |
| Mounting diameter on machine side mm C3 DCONMS | 3 |
| Machine-side admission form | Cylindrical shaft, square |
| Coating H5 COATN | uncoated |
| Bore type | through hole |
| DIN Norm | Factory standard |
| Area of application material to be processed | Universal,P,M,K |
| Total length mm | 50 |
| Manufacturer item number shop | 6136101120 |
| Collar length mm | 10.5 |
| Cutting diameter 1 stage min mm A11 DC1N | 1.12 |
| Cutting length max mm | 4.7 |
| Cutting direction | right |
| Tolerance field | H7 |

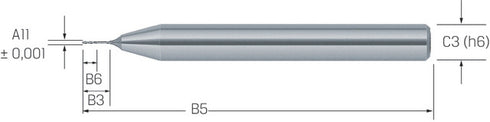

| A11 Cutting diameter 1 stage min mm | 1.12 |
| B2 B6 Cutting length max mm | 4.7 |
| B3 B4 B5 Total length mm | 50 |
| B3 Collar length mm | 10.5 |
| C12 Mounting form on the machine side | Cylindrical shaft, square |
| C3 Mounting diameter on machine side mm | 3 |
| F1 Cutting Direction | right |
