Technical data

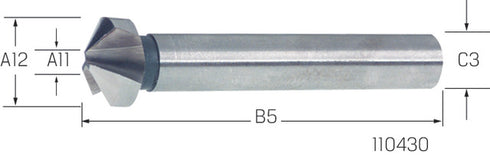

| Mounting diameter on machine side mm C3 DCONMS | 8 |
| Machine-side admission form | Cylindrical shaft |
| Coating H5 COATN | uncoated |
| DIN Norm | DIN 334 |
| Form | C |
| Total length mm | 56 |
| Manufacturer item number shop | 110430 12,4 |
| Relief angle | radially relief ground |
| Material | HSS |
| Maximum cutting diameter mm A12 DCX | 12.4 |
| Cutting diameter min mm A11 DC1 | 3.2 |
| Cutting number | 3 |
| Cutting direction | right |
| Countersink angle | 120 |
| A11 Cutting diameter min mm | 3.2 |
| A12 Cutting diameter max mm | 12.4 |
| B3 B4 B5 Total length mm | 56 |
| C12 Mounting form on the machine side | Cylindrical shaft |
| C3 Mounting diameter on machine side mm | 8 |
| F1 Cutting Direction | right |
