Technical data
| Manufacturer item number shop: | 102620 5,90 |

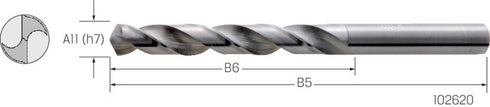

| [B3/B4/B5] Total length mm: | 93 |
| [A3/B2/B4] Usable length mm: | 29.5 |
| [B6] Flute length mm: | 57 |
| [A11] Cutting diameter, min. mm: | 5.90 |
| Coolant outlet [H22/CXSC]: | No |
| DIN standard: | Factory standard |
| Drilling depth [A11 x D]: | 5×A11 |
| Area of application (material to be processed): | Universal, P, K, M |
| [C12] Recording form, machine side: | Cylindrical shaft |
| Coating [H5/COATN]: | uncoated |
| Material: | Solid carbide |
| Tip angle: | 118 |
| Type of drill: | Type N |
