Tabular product data

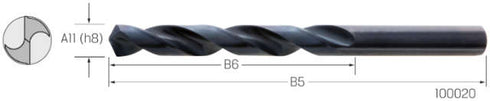

| Machine-side admission form | Cylindrical shaft |
| Coating H5 COATN | uncoated |
| Drill type | Type N |
| DIN Norm | DIN 338 |
| Area of application material to be processed | P,K |
| Total length mm | 142 |
| Manufacturer item number shop | 100020 11,60 |
| Internal cooling H22 CXSC | No |
| Usable length mm B2 B4 LU | 76.6 |
| Cutting diameter min mm A11 DC1 | 11.6 |
| Flute length mm B6 LCF | 94 |
| Tip angle | 118 |
| A11 Cutting diameter min mm | 11.6 |
| A3 B2 B4 Usable length mm | 76.6 |
| B3 B4 B5 Total length mm | 142 |
| B6 Flute length mm | 94 |
| C12 Mounting form on the machine side | Cylindrical shaft |
